src/ex04_light
import * as THREE from "three";
/* 주제: 빛(조명) 설정하기 */
export default function example() {
/* Renderer 만들기 : html에 캔버스 미리 만들기 */
const canvas = document.querySelector("#three-canvas");
const renderer = new THREE.WebGLRenderer({
canvas,
antialias: true
// alpha: true // 배경 투명도 설정
});
renderer.setSize(window.innerWidth, window.innerHeight);
/* 디바이스 픽셀 비율을 설정 */
renderer.setPixelRatio(window.devicePixelRatio > 1 ? 2 : 1);
/* 배경색, 투명화 설정 */
// renderer.setClearAlpha(0.5); // 불투명도 설정
// renderer.setClearColor(0x00ff00);
/* Scene 만들기 */
const scene = new THREE.Scene();
// scene.background = new THREE.Color("blue");
/* Camera 만들기 */
const camera = new THREE.PerspectiveCamera(
75, // 시야각 (field of view)
window.innerWidth / window.innerHeight, // 종횡비(aspect)
0.1, // near
1000 // far
);
camera.position.x = 2;
camera.position.y = 2;
camera.position.z = 5;
scene.add(camera);

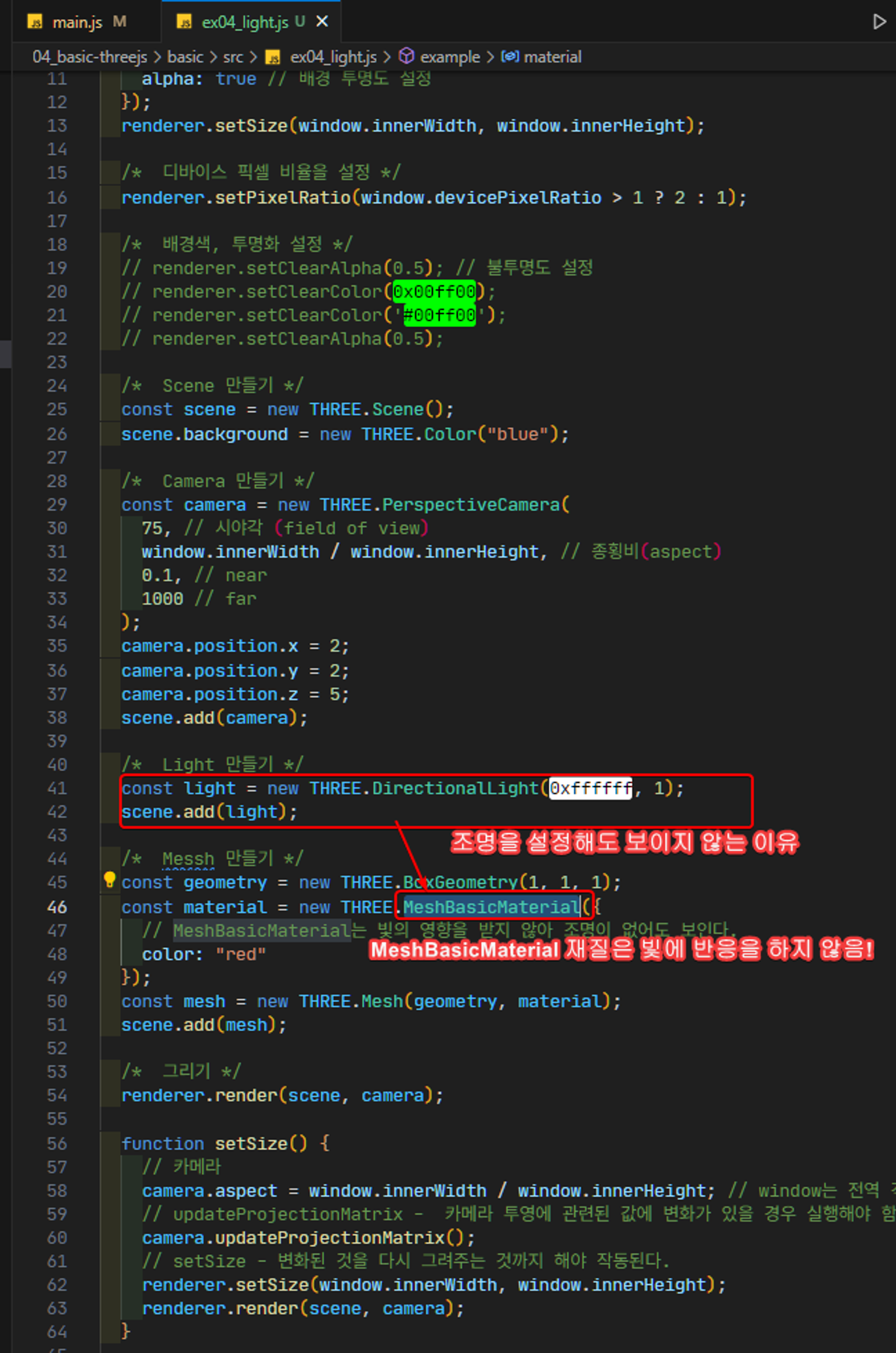

/* Light 만들기 */
const light = new THREE.DirectionalLight(0xffffff, 2);
light.position.x = 2;
light.position.z = 2;
scene.add(light);
/* Messh 만들기 */
const geometry = new THREE.BoxGeometry(1, 1, 1);
const material = new THREE.**MeshStandardMaterial**({
// MeshBasicMaterial는 빛의 영향을 받지 않아 조명이 없어도 보인다.
color: "red"
});
const mesh = new THREE.Mesh(geometry, material);
scene.add(mesh);
/* 그리기 */
renderer.render(scene, camera);
function setSize() {
// 카메라
camera.aspect = window.innerWidth / window.innerHeight; // window는 전역 객쳐여서 작성하지 않아도 됨. window.innerWidth === innerWidth
// updateProjectionMatrix - 카메라 투영에 관련된 값에 변화가 있을 경우 실행해야 함
camera.updateProjectionMatrix();
// setSize - 변화된 것을 다시 그려주는 것까지 해야 작동된다.
renderer.setSize(window.innerWidth, window.innerHeight);
renderer.render(scene, camera);
}
/* 이벤트 */
window.addEventListener("resize", setSize);
}
- 빛 추가 : THREE.DirectionalLight(빛의 색상, 빛의 강도)
- const light = new THREE.DirectionalLight(0xffffff, 1);
- 빛도 scene에 추가해야 보인다. scene.add(light);
- 재질이 MeshBasicMaterial 이면 빛에 영향을 받지 않는다.
- MeshBasicMaterial 로 변경하기
AmbientLight 조명
// Light
const ambientLight = new THREE.AmbientLight('white', 0.5);
scene.add(ambientLight);
const directionalLight = new THREE.DirectionalLight('white', 1);
directionalLight.position.x = 1;
directionalLight.position.z = 2;
scene.add(directionalLight);
은은하게 전체적으로 조명을 적용해 줄 때
